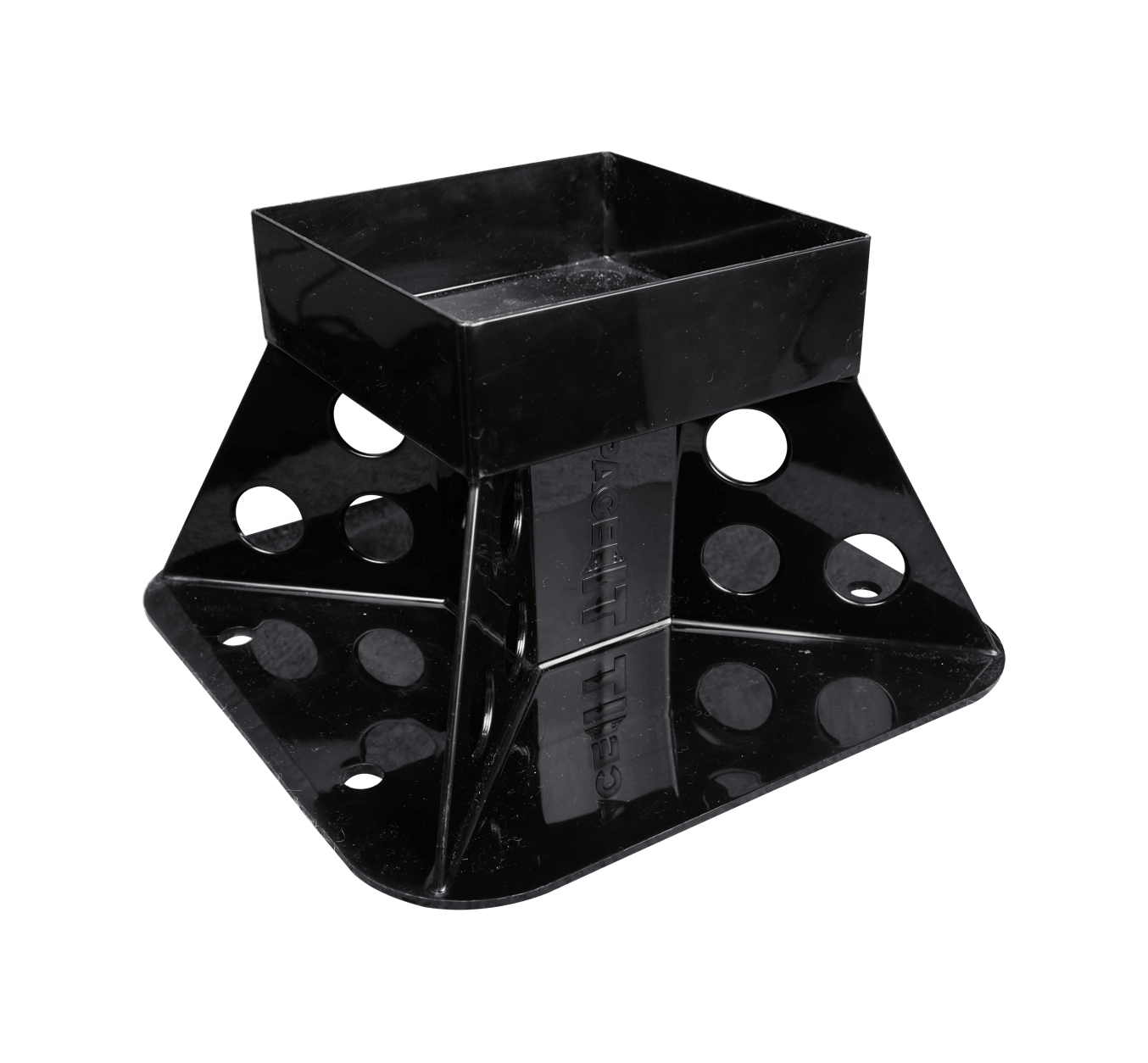

Space-IT pile pad

The Space-IT pile pad will save builders time and money.

Say goodbye to tiresome and time consuming methods of the past. The Space-IT pile pad can be used for all house & decking piles and will substantially increase your efficiency and productivity.

You will no longer have to muck around with site concrete or have to worry about bracing or supporting the pile off the ground.

Simply screw the pile into the Space-IT pile pad and you're ready to go! There will be no more time wasted waiting for concrete to go off before bearers can go on.

The Space-IT pile pad will take approximately 500kgs of load, is made from 100% recycled plactic & is 100% NZ made. It also complies to NZ building standard 3604 and is BRANZ approved.

See the pile pad in use Media gallery

How Space-IT pile pad works

It only takes four simple steps to perfect piles with Space-IT.

1

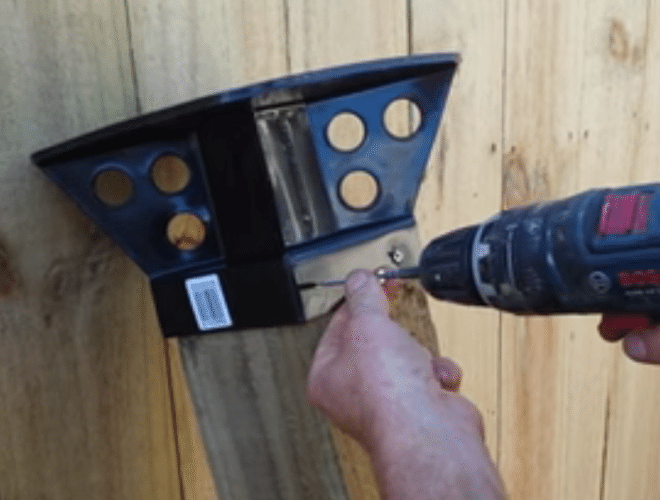

Prepare your piles

Prepare your piles

Using standard 125mm Senton piles, simply screw Space-IT pile pad securely in place on the bottom of the pile using four stainless screws. Non square piles can also be used by cutting square slot into end for pad to fit into.

3

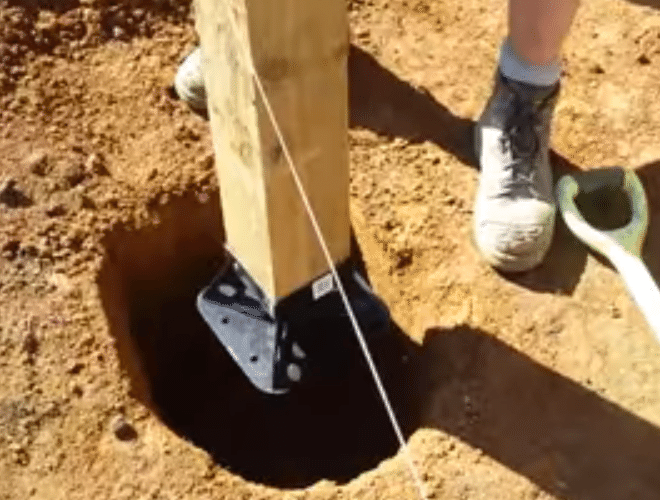

Align and pin

Align and pin

Align pile roughtly to string lines and use a level to make sure pile is as close to plumb as possible. Once level you can pin the pad to the ground via the 4 x 12mm holes on the base with supplied plastic pegs.

2

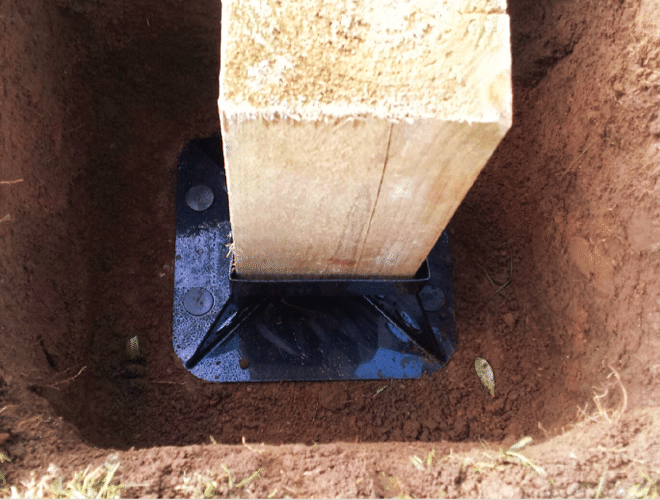

Place in hole

Place in hole

Install pile with pad fitted into pre dug, adequately sized hole. If the bottom of the hole isn't level a small amount of sand or agregate can be used or you can use the pile like a ram to level it off.

4

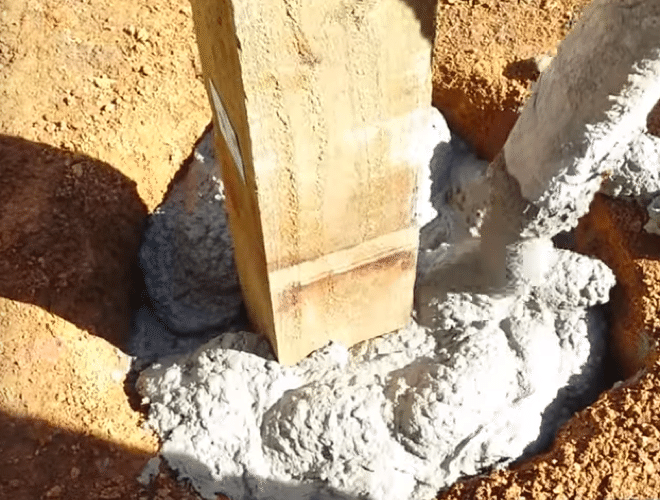

Add concrete

Add concrete

Once you have ensured that the pile is plumb and that the base of the pile is clear of soil you are ready to pour the concrete. Make sure concrete is well vibrated into place, let set... and you're done!

1

Prepare your piles

Prepare your piles

Using standard 125mm Senton piles, simply screw Space-IT pile pad securely in place on the bottom of the pile using four stainless screws. Non square piles can also be used by cutting square slot into end for pad to fit into.

2

Place in hole

Place in hole

Install pile with pad fitted into pre dug, adequately sized hole. If the bottom of the hole isn't level a small amount of sand or agregate can be used or you can use the pile like a ram to level it off.

3

Align and pin

Align and pin

Align pile roughtly to string lines and use a level to make sure pile is as close to plumb as possible. Once level you can pin the pad to the ground via the 4 x 12mm holes on the base with supplied plastic pegs.

4

Add concrete

Add concrete

Once you have ensured that the pile is plumb and that the base of the pile is clear of soil you are ready to pour the concrete. Make sure concrete is well vibrated into place, let set... and you're done!

Download full instructions

Where to get Space-IT

Carters

All Auckland Carters locations, Carters Hamilton, Kopu & Dunedin

Mitre 10 Mega

Glenfield, Westgate, Petone & Ferry Mead Mitre 10 Mega's - Waiuku & Onehunga Mitre 10

Bunnings Warehouse

Botany, East Tamaki trade, Avondale trade, Silverdale, Hamilton, Riccarton

ITM

Dayle ITM Avondale & Dysart ITM Glen Innes

Akarana Timbers

Akarana Timbers East Tamaki Auckland

South Pacific Timber

South Pacific Timber Eden Terrace Auckland

PlaceMakers

Any Placemakers

Timberworld Warkworth

Timberworld Warkworth & East Tamaki

Henderson Timber

Henderson Timber

Order from any other trade store country wide.

See all supplier locations
